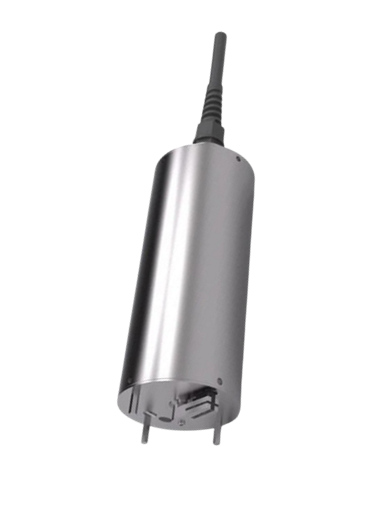

UV-CON Turbidity Analyzer
The online turbidity electrode adopts 90-degree scattered light method and uses a near-infrared light source to eliminate chromaticity interference and meets the IS07027 standard. The LED emits a near-infrared beam to the sample at a certain angle. The beam will emit scattering when it hits the suspended matter in the sample during transmission.
Technical Parameter | |
Measuring range | 0-200 |
Resolution | 0.01,0.1,1.0 |
Indication error | ±0.2NTU or ±5% |
Operating temperature | 5-40℃ |
Deepest depth | Underwater 6M |
Digital interface | MODBUS/RS485 |
Analog interface | 4-20mA |
powered by | 12VDC±20% |
calibration | One point or two point |
Protection class | Ip68 |
Installation method | Flow tank installation or Submerged installation |
size | Φ54*150mm |
temperature range | -10 -50℃ |
Cable length | 5M |
Texture | 316 stainless steel |
