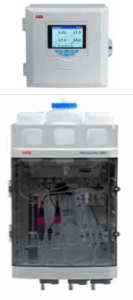

Sodium Analyzer
Compact online analyzer for the automatic measurement of Sodium
DUAL COMPARTMENT ENCLOSURE
To ensure complete separation between the electronics and the wet part. The reagent bottle is located in the wet part.
AUTOMATIC CALIBRATION
Automatic 1, 2 points calibration minimizes intervention ensuring the most accurate results are obtained. Free selectable calibration intervals. Results of the last ten calibration are stored in the internal datalogger.
REDUCED OPERATING COSTS
Low reagent consumption. The design with no moving parts reduces maintenance requirements and minimizes cost of ownership.
MEASUREMENT PRINCIPLE
The sodium measurement is based on the proven accuracy of the glass sodium electrode for the online potentiometry detection of low ppb traces of sodium. The sodium sensor develops a potential proportional to the log of the sodium concentration, after the pH of the sample is raised to 11 to eliminate pH and ammonium interferences. This is obtained using reagent vapor addition.
GRAB SAMPLE CAPABILITY
Enables unattended analysis of manually collected samples. Results of external samples are stored in the datalogger, including time and data information.
COLOR TOUCHSCREEN UER INTERFACE
The NA-600 analyzer is equipped with a graphic touchscreen interface showing measured values and status information. Easy access to menus and functions. Multiple languages. Integrated datalogger with USB download.
FACTORY TESTED, READY FOR INSTALLATION AND OPERATION
Just connect the power, sample, and reagent lines and the analyzer is fully operational.
Measurement parameter:
Na+ (ppb,ppm,mg/l)
Measuring principle:
Online potentiometric ISE
Measuring range:
0.1 ppb to 10ppm
Reproducibility:
±0.2 ppb or ±5%, whichever is greater, at constant temperature
Analysis frequency:
Continious operation, delay time T90 180 sec (0 to 10 ppb). Temperature: 41-113oF (5-45oC) pH in the range 4-11 Flow to internal reservoir min 3L/h-max Sample: 12 L/h Pressure: 5-15 psig Inlet connection: 6mm (1/8-in.) barbed fitting for flexible tubing Outlet connection: 12mm OD (1/2-in.)
Calibration:
NA-600-1: manual calibration (1 or 2 points) NA-600-2: 2 points automatic calibration, Grab sample
Installation: Wall or rack mounting in vertical position by fixing hinges
Power supply:
Voltage 100-240 VAC 50/60 Hz standard or 24 VDC (option), Power consumption: max. 30 VA
Outputs:
2 x 4-20 mA outputs for measured data Modbus RTU RS485
Alarms:
3 SPDT programmable potential free relays, N.O. or N.C.
Operating Temperature:
41-122oF (5 to 50oC)
Humidity:
10 to 85% non-condensing (indoor use, outdoor installation only possible with protective cabinet or shelter not included)
Dimensions analyzer:
33.9 x 15.0 x 8.3 in / 862.4 x H x W x D) 380 x 210 mm
Weight:
Approx. 44 lbs (20Kg)
Ingress Protection:
IP54
Power utilities
Cooling water
Water steam cycle
Condensate analysis
Boiler feedwater
Reversed osmosis
Turbine protection
Demineralization plants
High Purity water
Process water
