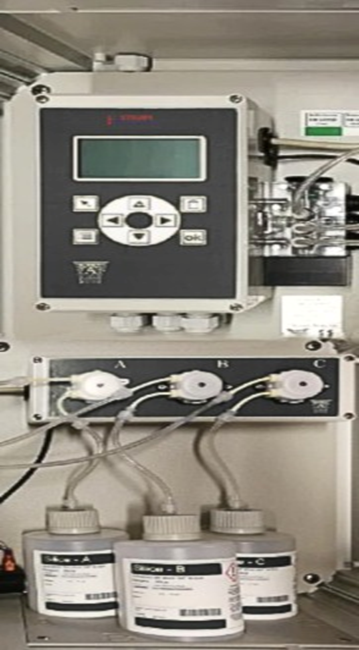

Multifunctional microprocessor analyzer to analyze the amount of silica in the water. Possibility to program two alarm set points (pre-alarm and alarm). The SEPL Silica Analyzer controls the quality of the water; this allows to avoid problems or damages caused by the presence of Silica when a programmed threshold is exceeded. With display of the measurement result. 4 programmable relay outputs: max value 1, max. value 2 (or minimum and maximum value), control for: cooler, wash valve, pump, error, indicator failure or remote signaling 1 output 0 (4) -20mA: result of the analysis (linear hardness) or operation.
Technical Parameter | |
Power Connection | 230V 50-60Hz (exactly: 85-264V, 47-63 Hz) or 24V AC/DC |
Measuring Range | 0.3 – 10 ppm |
Degree of protection: | IP-55 |
Outputs: | 4 Relay output 1 Analogue output (4-20 ma) SD card |
Inputs: | 2 Digital entries |
Temperature: | 5-40 Deg C |
Sample inlet/outlet connection: | flexible hose 6 mm outside diameter |
Weight | 10 Kg |
Dimension | 650 h X 300 w X 200 D |
