Description

---

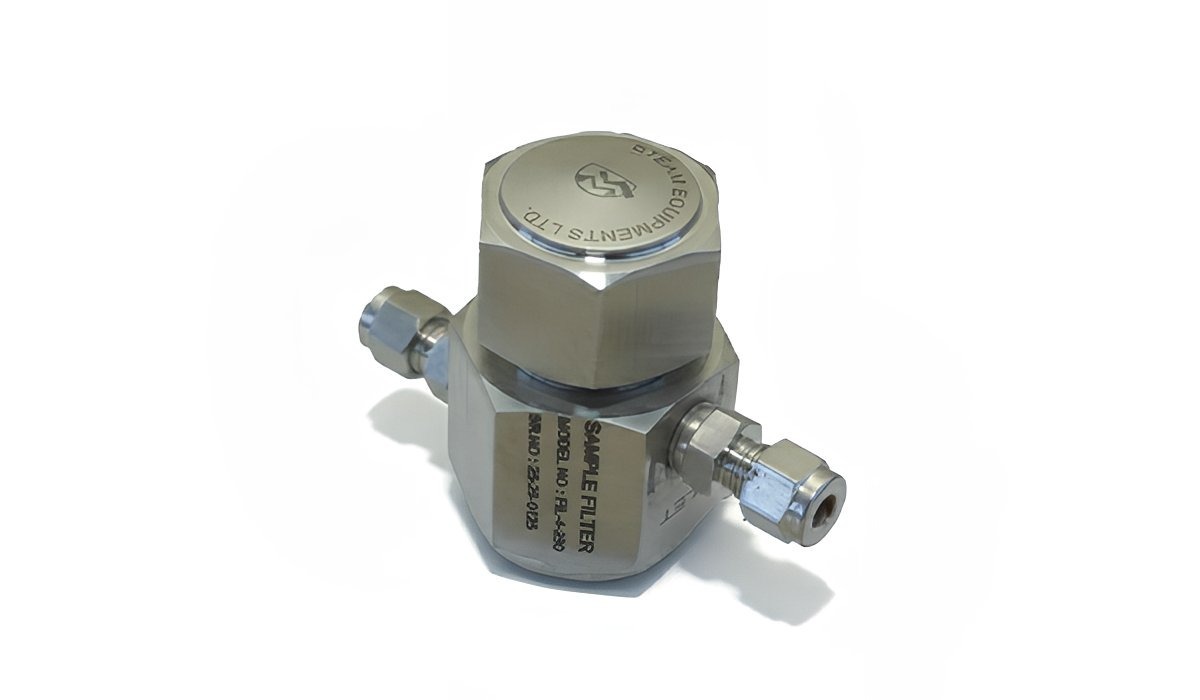

The Sample Filter is a critical component of the Steam and Water Analysis System (SWAS), designed to remove suspended particles, corrosion products, and impurities from steam and water samples before they enter analyzers. It ensures clean, stable, and representative samples for accurate measurement of key parameters such as conductivity, pH, silica, sodium, and dissolved oxygen. Engineered with high-efficiency filtration media and corrosion-resistant materials, the sample filter enhances analyzer protection, minimizes maintenance, and improves the overall reliability of the SWAS system.

Features

---

1) Design pressure 400 Bar, temperature 650'C

2) 40 Micron Sintered Stainless Steel filter element

3) Compact Design

4) Spring Loaded, Easy to clean

5) Stainles steel body material

Specifications:

---

Description

---

Features

---

Specifications:

---

Description

---

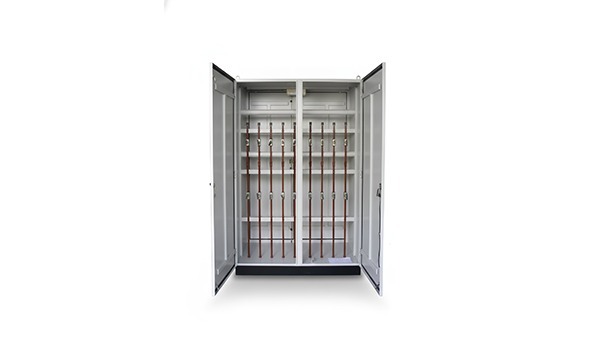

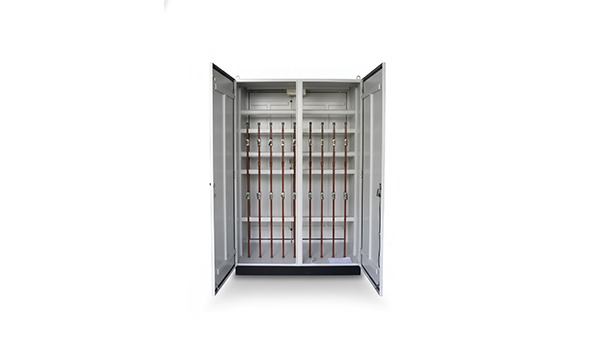

The Local Instrument Enclosure is a robust protective housing designed to ensure the safe and reliable operation of field-mounted instruments in demanding industrial environments. It shields critical devices such as pressure transmitters, flowmeters, temperature sensors, analyzers, gauges, switches, and junction boxes from adverse conditions including dust, moisture, extreme temperatures, vibration, and chemical exposure.

Constructed from high-grade stainless steel, aluminum, or powder-coated mild steel, the enclosure provides superior corrosion resistance and long service life in process plants, refineries, power stations, and outdoor installations. Its weatherproof and IP-rated design ensures complete environmental sealing, while optional thermal insulation, sunshields, heaters, or cooling arrangements protect instruments from thermal stress.

The enclosure is engineered for easy access with hinged or removable doors, allowing safe and convenient maintenance, calibration, or inspection activities. Cable entry glands, mounting brackets, and customized cutouts can be provided to suit specific project or instrument requirements.

Local Instrument Enclosures form a vital part of SWAS systems, analyzer panels, and field instrumentation loops, enhancing reliability, reducing maintenance downtime, and ensuring compliance with safety standards in harsh operating conditions.

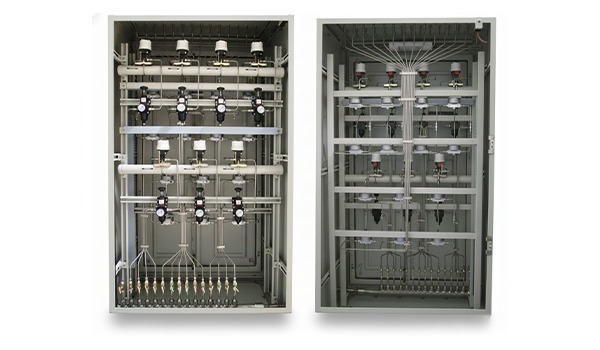

Description

---

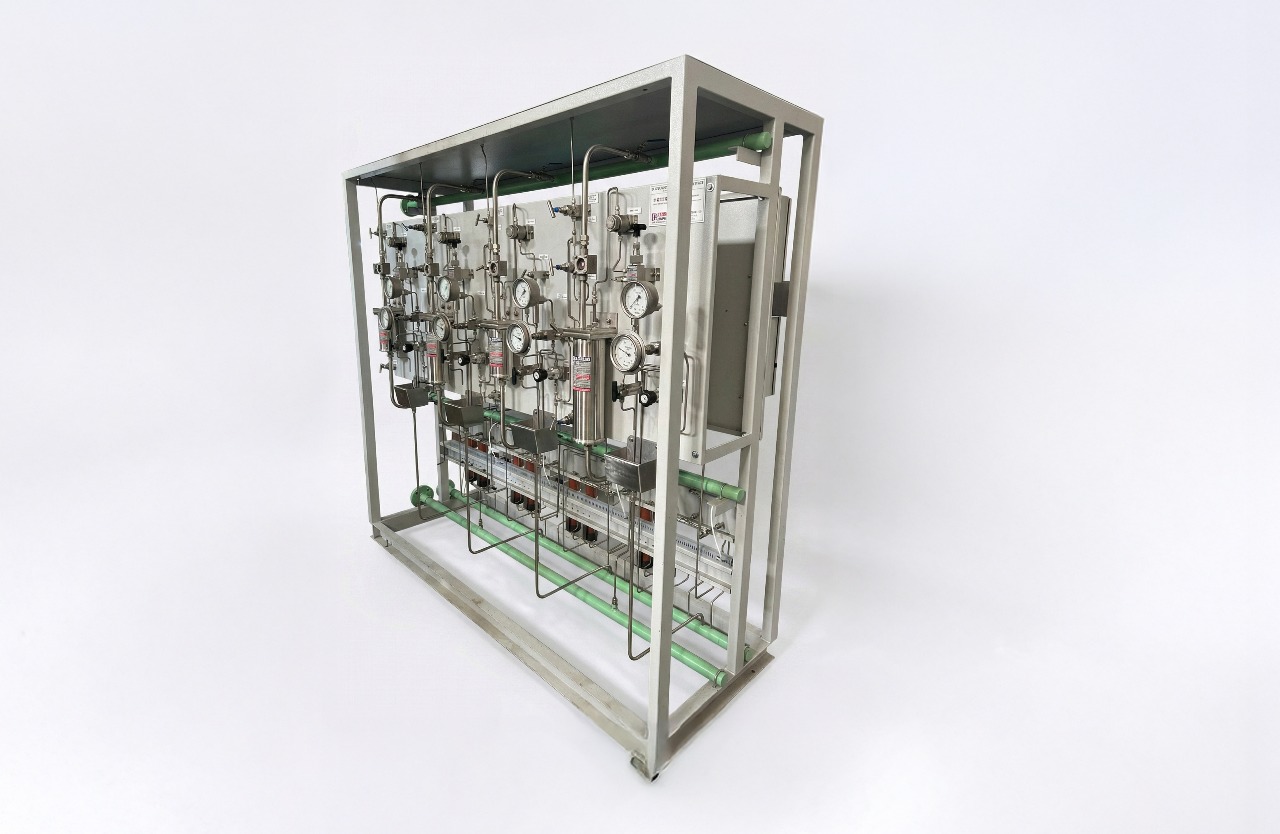

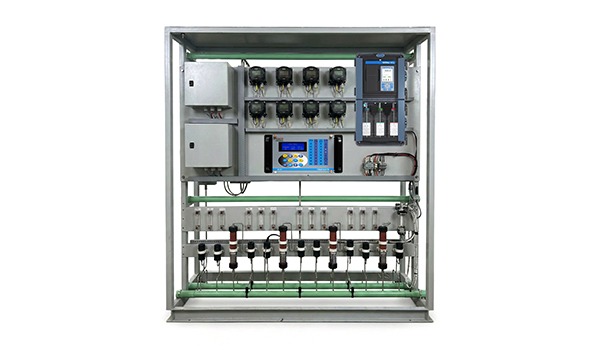

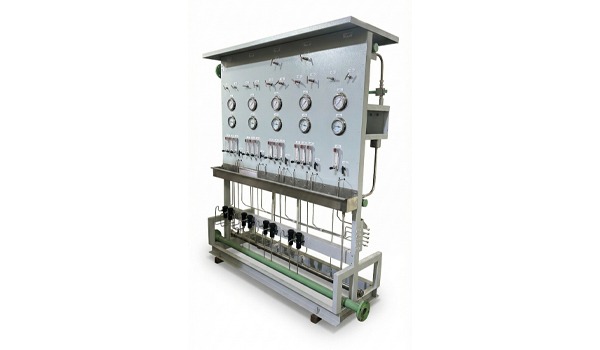

The Local Instrument Racks and Panels are engineered and fabricated to house field-mounted transmitters, control instruments, and related accessories. These assemblies are designed for ease of access, safe operation and protection from environmental conditions. The panels are customized to client specifications and fabricated from stainless steel or coated mild steel for enhanced durability and corrosion resistance.

Description

---

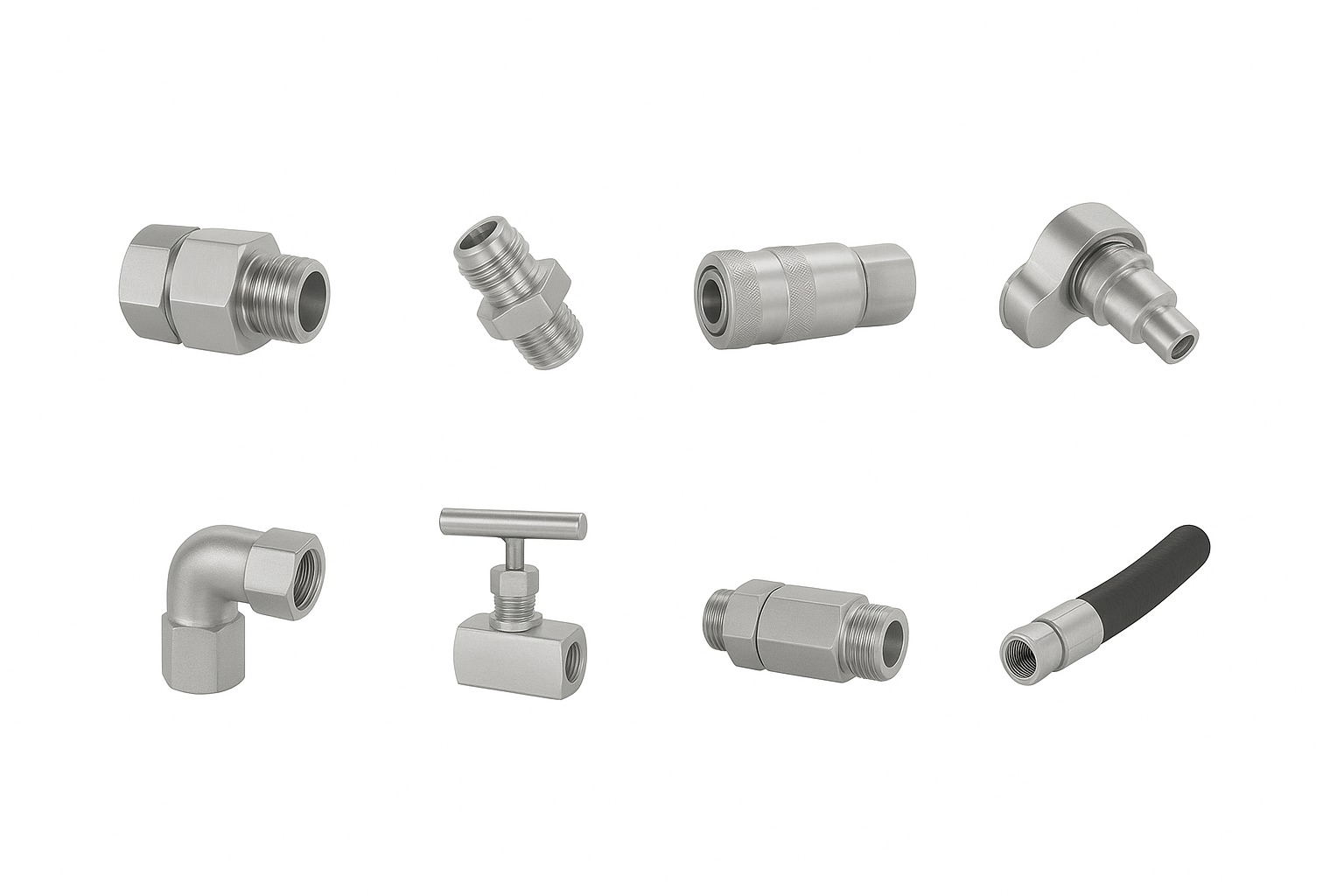

For Hydraulic Application

---

• Tube Fittings to DIN 2353
• 37° Flare Fittings
• Quick Connect Couplings
• Swivel Joints
• Pipe Fittings
• Needle Valves
• Check Valves

Description

---

The Company manufactures and supplies a comprehensive range of instrument valves, manifolds and fittings used for precision control, isolation, regulation and distribution of process media in critical industrial applications. These products are designed to operate under high-pressure and high-temperature conditions and are used in instrumentation, control and analytical systems where reliability and accuracy are essential.

These valves, manifolds and fittings are widely used in instrumentation systems, CNG installations and hydraulic applications.

· Instrumentation Applications:  The Company offers a wide range of valves, manifolds, filters and tube fittings for instrumentation applications, including twin ferrule fittings, ball valves, needle valves, manifold valves, gauge valves, double block & bleed valves and micron in-line filters. These products are designed for precise flow control, leak-proof connections and safe operation in high-pressure and high-temperature process systems. The range is widely used in instrumentation, process control and analytical systems across various industries.

· CNG Applications: The Company manufactures specialized fittings, valves and manifolds suitable for CNG applications, including SS316 twin ferrule tube fittings, ball valves, manifold valves, check valves, relief valves and high-pressure hose pipes. These products are designed to withstand high pressure and ensure safe and reliable gas flow in CNG stations, gas distribution systems and related installations.

Hydraulic Applications: The Company supplies tube fittings, valves and couplings for hydraulic applications, including DIN 2353 tube fittings, 37° flare fittings, quick connect couplings, swivel joints, pipe fittings, needle valves and check valves. These components are designed for high-pressure hydraulic systems to provide secure connections, smooth fluid flow and reliable performance in industrial and engineering applications.

Description

---

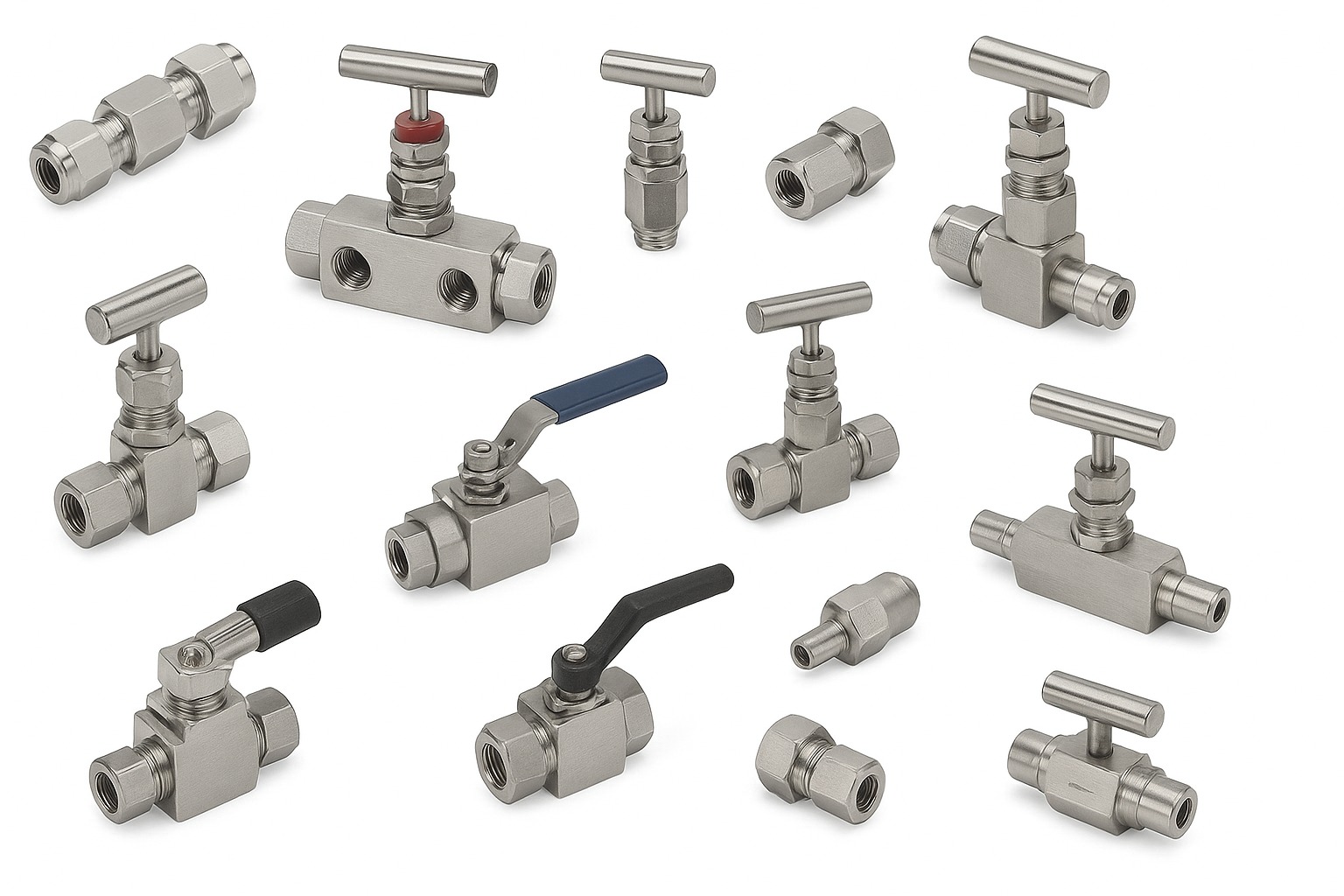

For Instrumentation Applications

---

• Twin Ferrule Tube Fittings
• Single Ferrule Tube Fittings
• Precision Pipe Fittings
• Tube Fittings with Integral Flange
• Ball Valves
• Needle Valves
• Gauge / Root Valves
• 2/3/5 Way Manifold Valves
• Monoflange Valves
• Double Block & Bleed Valves
• Purge & Bleed Valves
• Toggle Valves
• Relief Valves
• Check Valves
• Micron In-Line Filters

Description

---

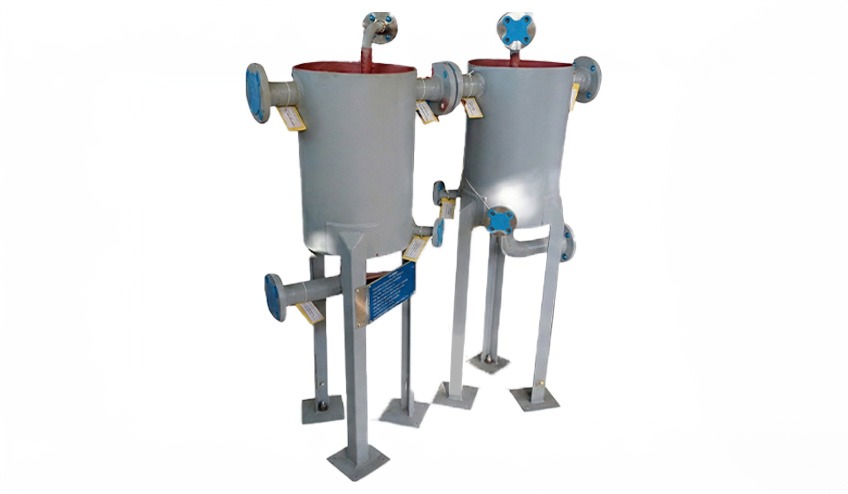

A Refinery Cooler is a robust heat exchange unit designed to safely and efficiently reduce the temperature of high-temperature process fluids, steam, or condensate in refinery and petrochemical plants. It plays a critical role in protecting downstream equipment, piping, and instrumentation by ensuring process streams are cooled to safe, controlled levels before further processing, sampling, or analysis.

Manufactured using high-grade, corrosion-resistant materials such as stainless steel, refinery coolers are built to withstand high pressure, high temperature, and aggressive process conditions commonly found in refinery operations. The cooler provides stable thermal performance, minimizes thermal shock, and ensures consistent outlet temperatures under continuous operation. Its compact and maintenance-friendly design makes it suitable for integration into sampling systems, SWAS panels, and refinery utility lines, enhancing overall process safety, reliability, and operational efficiency.

Features

---

• Designed for high-temperature and high-pressure refinery process streams

• Efficient heat dissipation to ensure safe outlet temperatures

• Corrosion-resistant construction for harsh refinery and petrochemical environments

• Compatible with sampling systems, SWAS panels, and process utility lines

• Flexible mounting options for panel, skid, or field installation

• Leak-tight design ensures safe and reliable operation

Specifications:

---

Description

---

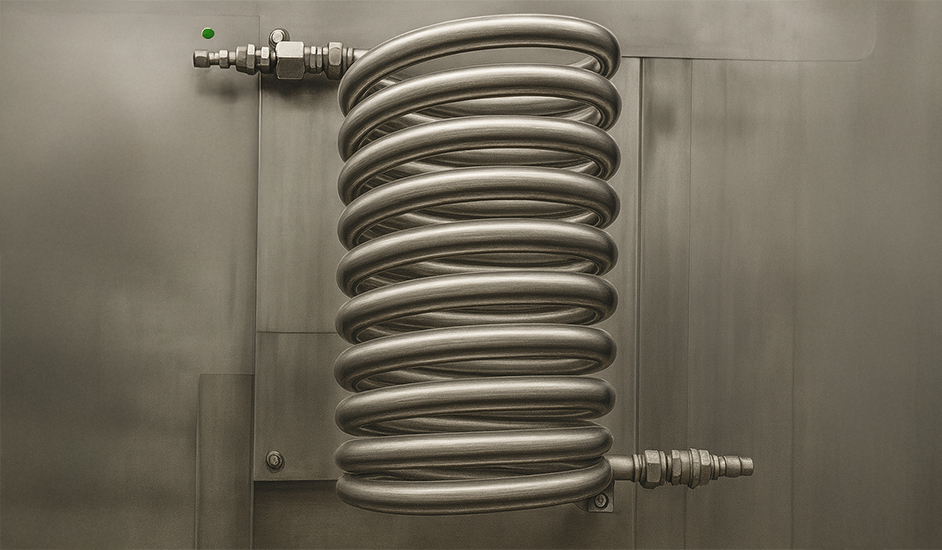

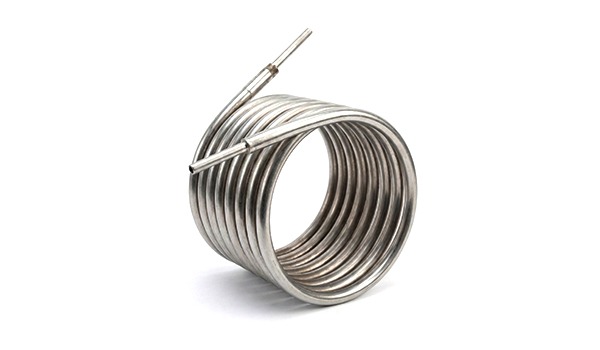

Coil in coil type heat exchangers are spirally wound, full counter flow heat exchangers well suited for a variety of applications where low flow rates of high temperature and/or high pressure fluids need cooling . These coolers are designed for counter flow cooling to achieve close approach temperature.

Features

---

• Designed to handle high pressure upto 250 bar & High temperature upto 580 °C samples.

• Designed in compliance ASME BPE 2007

• Close approach temperature ( 2°C)

• Minimal Cooling water requirement

• Coils are spirally wounded to ensure maximum counter flow efficiency.

• Fully drainable inner and outer coil

Description

---

The Company designs and manufactures a wide range of Sample Coolers and Heat Exchangers that are used for cooling high-temperature process samples such as steam, water, and other industrial fluids prior to analysis. These products form a critical component of sampling and analytical systems by ensuring the safe and accurate measurement of process parameters without compromising analyzer performance or operator safety. The Company’s sample coolers are engineered to maintain precise temperature control and to handle high-pressure, high-temperature conditions typically encountered in power plants, refineries, and chemical process industries. The designs emphasize efficient heat transfer, minimal sample contamination and low maintenance requirements.

The product range under this category includes:

· Sample Coolers:Heat Exchangers: Standard single-coil or double-coil coolers designed for general industrial and utility applications, providing reliable cooling performance and long service life.

· Refinery Sample Coolers for Close Loop Sampling Systems: Specially designed coolers for refinery and petrochemical applications, capable of handling hydrocarbon and process condensate samples in closed-loop configurations, ensuring operator safety and environmental compliance.

· Coil-in-Coil Type Sample Cooler: Compact and high-efficiency design using concentric coil arrangement to achieve maximum heat transfer with minimal coolant consumption, suitable for applications where space optimization and performance consistency are critical.

· Close circuit cooling water system:  A closed-circuit cooling water system circulates water in a continuous loop to remove heat from the condenser. The heated water flows to the cooling tower, where natural or forced air cools it before returning to the condenser. This system is commonly used in power plants located away from large water sources. The large hyperbolic concrete towers seen near thermal power plants are cooling towers used to cool the circulating water.

All sample coolers are manufactured from corrosion-resistant materials such as stainless steel and are subjected to rigorous quality testing, including hydrostatic and performance testing, to ensure durability and compliance with international standards.

By integrating advanced design, precision fabrication, and robust materials, the Company’s Sample Coolers and Heat Exchangers deliver optimal performance and reliability in demanding process environments, making them suitable for power generation, oil & gas, and industrial utility sectors.

Applications

---

Specifications:

---

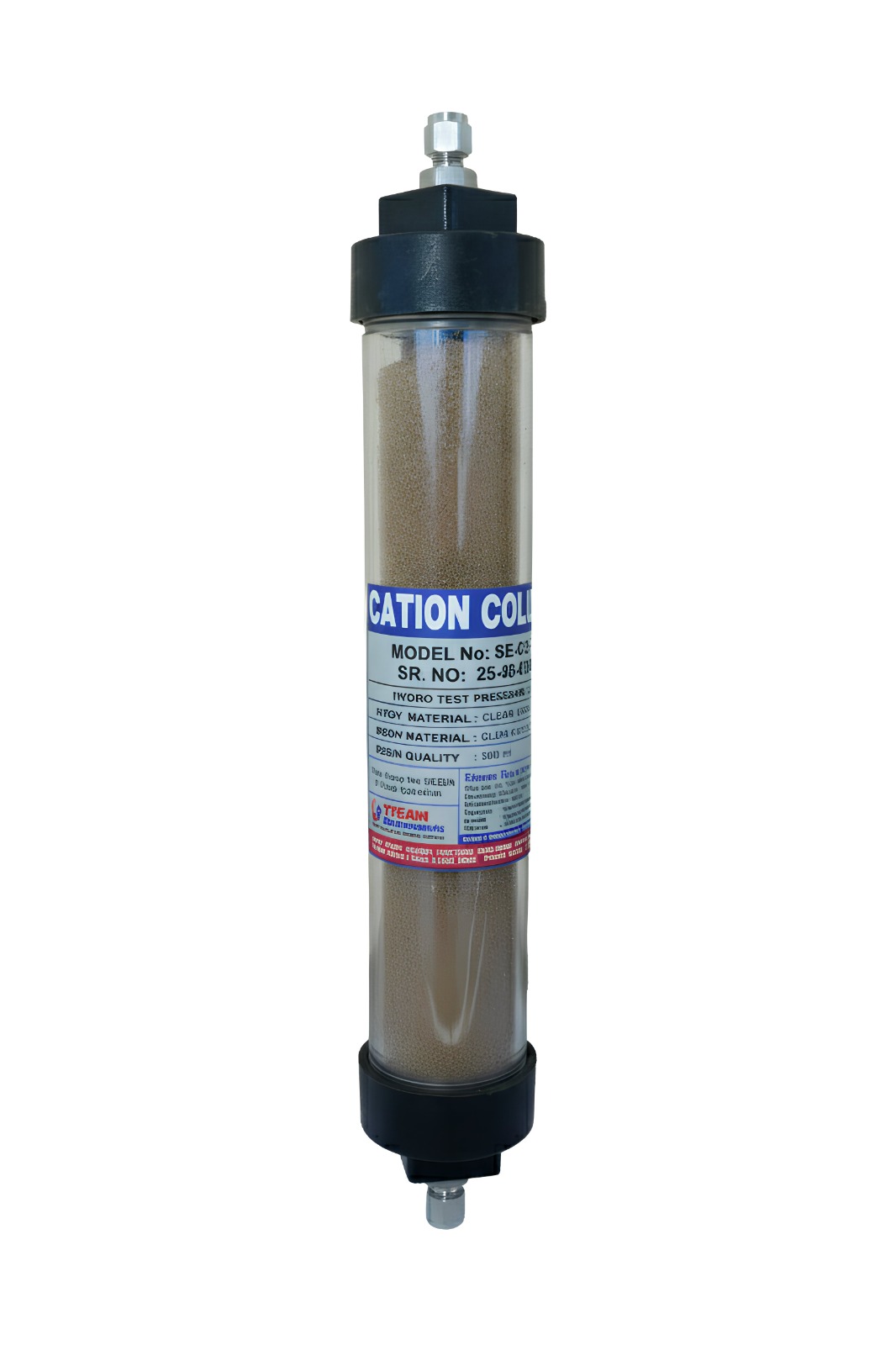

Description

---

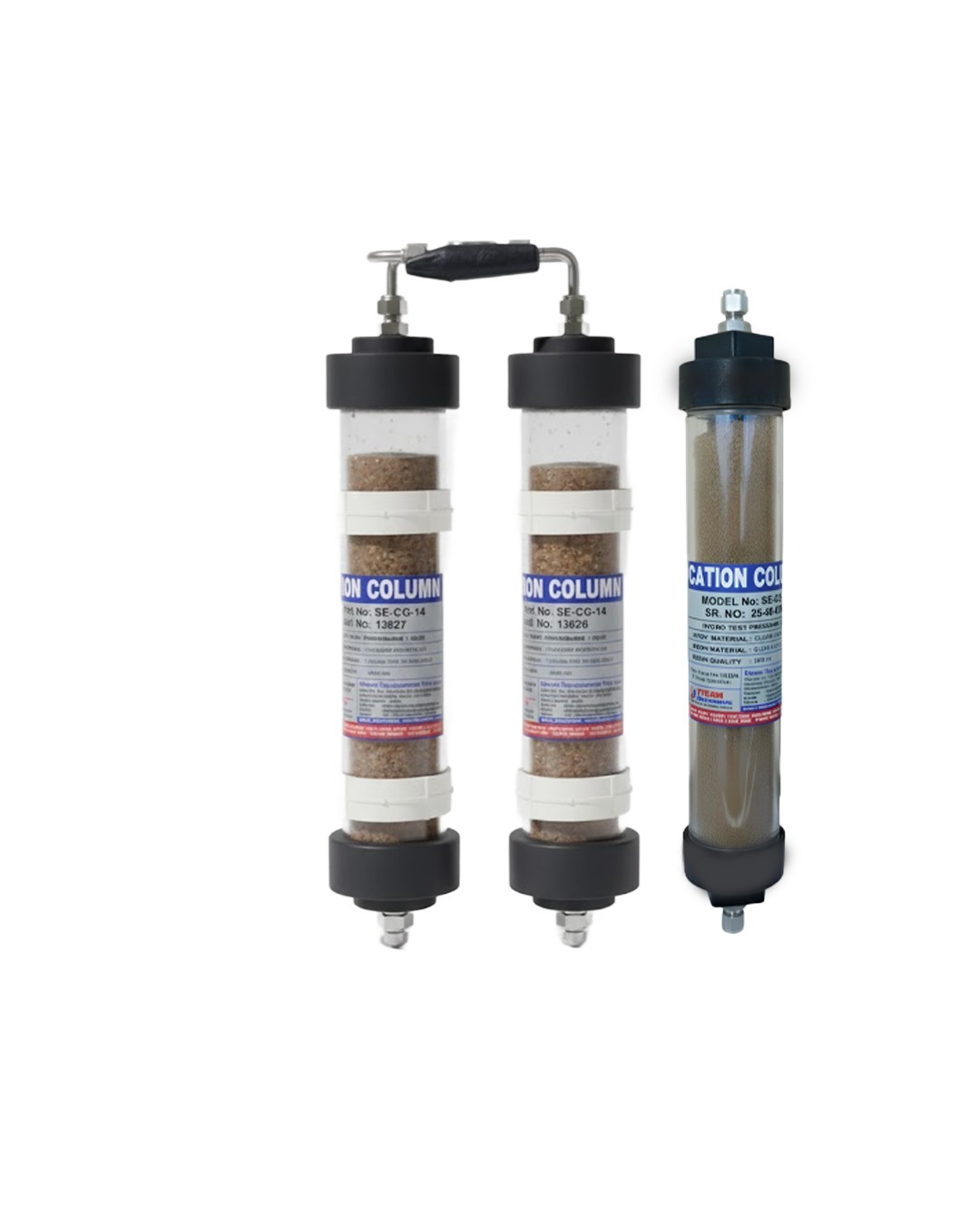

The Cation Exchange Column is an essential component of the Steam and Water Analysis System (SWAS), used to remove positively charged ions such as calcium, magnesium, sodium, and other cationic impurities from boiler water and condensate samples. This ensures accurate cation conductivity measurement, enabling early detection of ionic contamination and corrosion risk in power plant water-steam cycles.

The system is available in Single Column and Duplex Column configurations.The Single Column design provides reliable ion-exchange performance for standard sampling applications, offering stable conditioning of samples in continuous operation.The Duplex Column configuration features two ion-exchange units arranged for uninterrupted operation, allowing one column to remain in service while the other is in regeneration or standby mode. This ensures maximum uptime, redundancy, and consistent sample quality, especially in critical process and high-demand environments.

Features

---

1) Slim Design for better performance.

2) Color indicating type of resin.

3) Optional quick - disconnecting kit.

4) Designed for Max Pressure upto 10 Bar

5) Design Temperature: 80 C

6) Easy replacement of resin.

7) More than 3000 cation columns installed worldwide

Specifications:

---

Description

---

Description

---

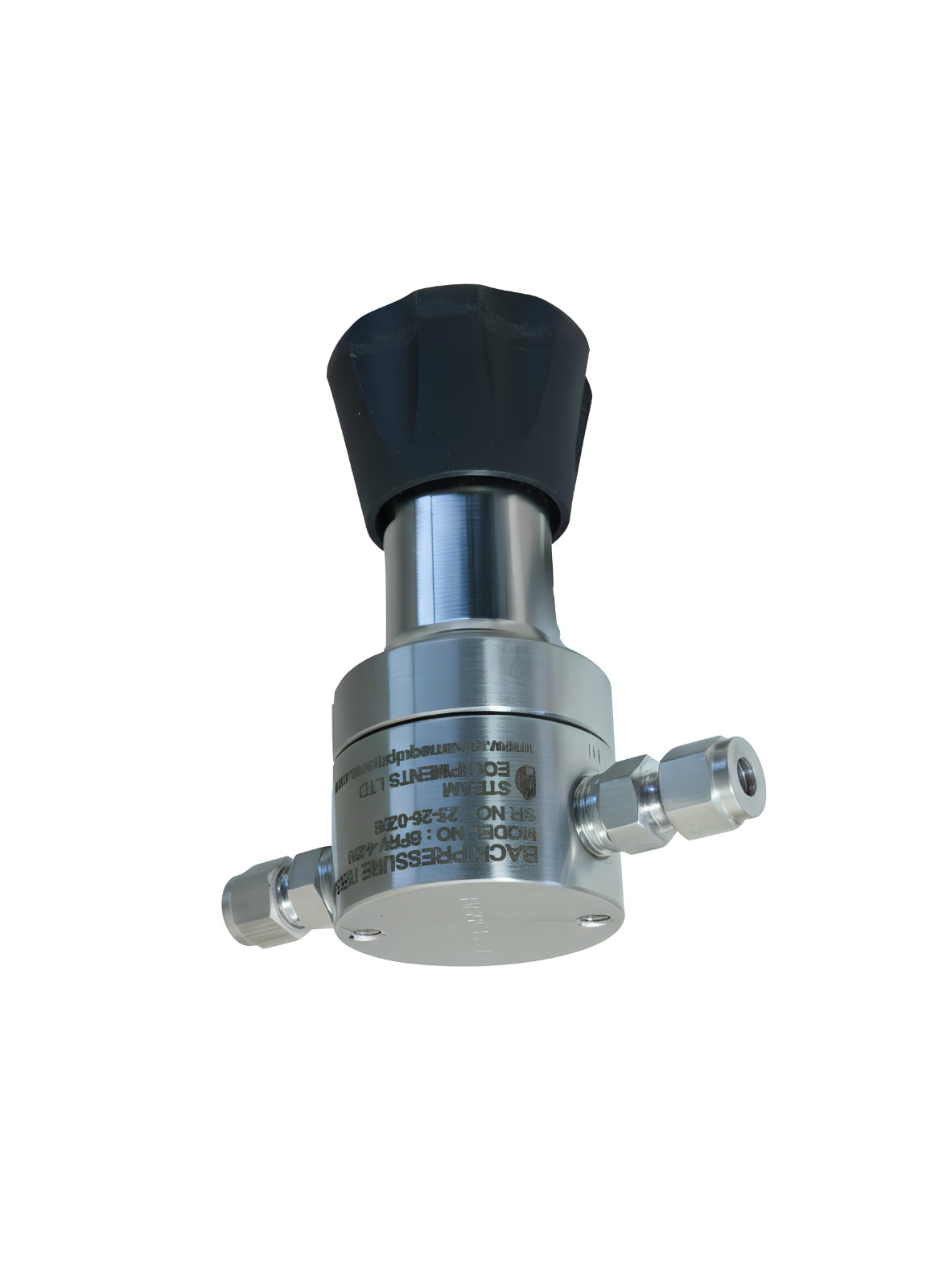

Back pressure regulator for gas or liquid service, is used to maintain the constant pressure in sampling system or act in a relief valve capacity. These regulators are generally used at the outlet of grab sample.

Features

---

• Set pressure: 3 bar, temp: 120°C (max).

• Very compact design.

• Stainless steel diaphragm.

• Fully stainless steel construction.

• 1/4″ OD or 3/8″ OD end connections.

• High Pressure capability upto 10 kg/cm2.

• Suitable for corrosive applications.

• Low operating torque.

• Compact design

Benefits

---

• Highly Sensitive, Diaphragm type.

• Accurate adjustment.

• Corrosion resistant.

Applications

---

BPRV are used in Steam & Water Analysis Systems, Instrumentation systems, etc.

• Steam & Water Analysis Systems.

• Instrumentation systems.

Specifications:

---

• Type: Spring Loaded Diaphragm type.

• Body material: SS 316.

• Inlet Pressure: 3 to 6 kg/cm2.

• Set Pressure: 2.5 kg/cm2.

• Setting: Adjustable with screw.

• Flow: 60 LPH.

• Weight: 1.1 kgs (approx)

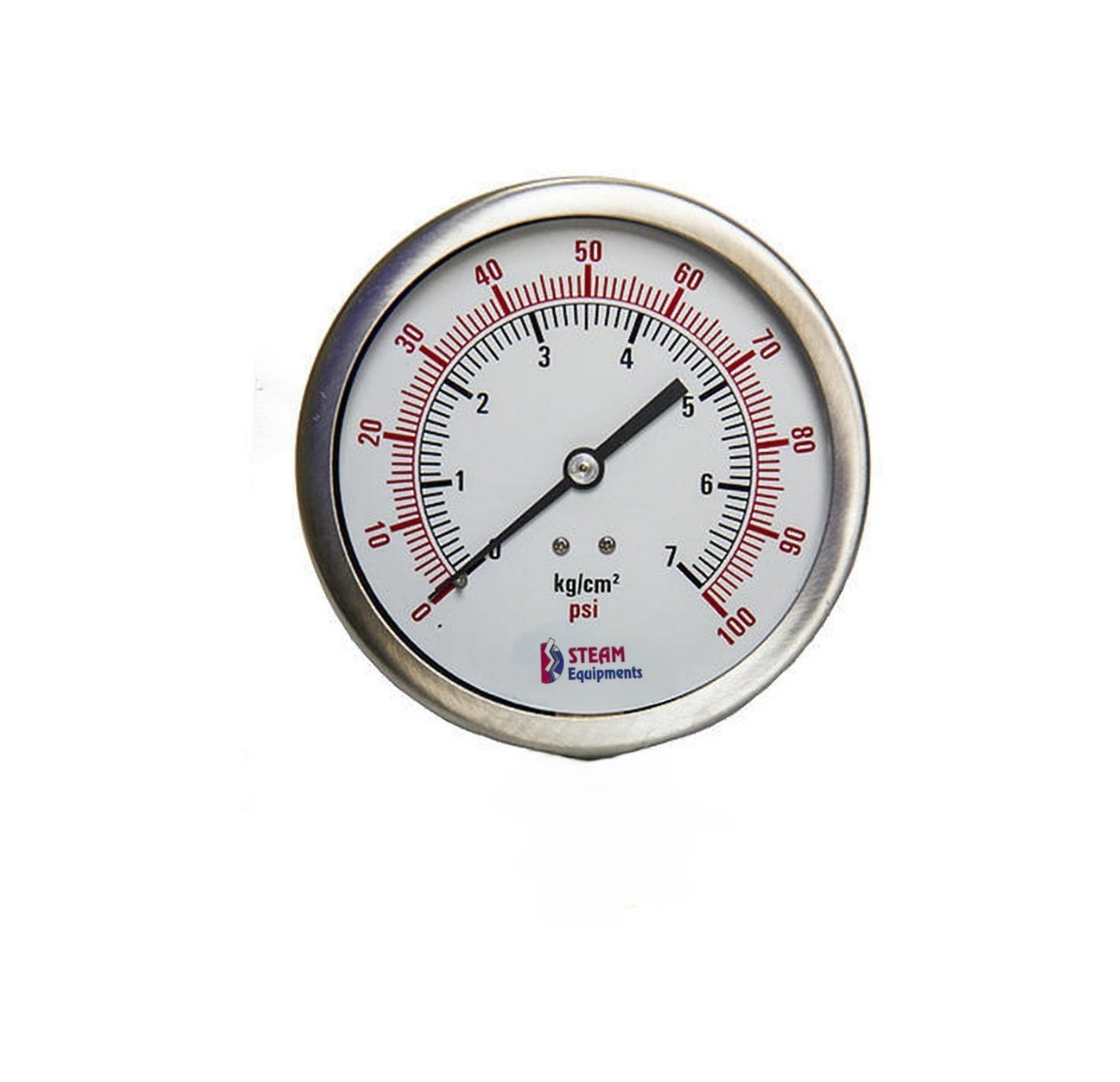

Description

---

The optimal solution for a wide range of industrial applications. An extensive portfolio of pressure gauges equipped with various technologies allow to measure relative, absolute and differential pressure, available in stainless steel, copper, monel, among other special materials. Measuring ranges between 0 … 4 mbar and 0 … 1600 bar and class 0.25.

Features

---

• Cost effective..

• Sleek design.

• Dry & fillable version.

• Standard followed in general EN 837-1.

Applications

---

• Suitable for clean air & gaseous or liquid media that will not obstruct the pressure system.

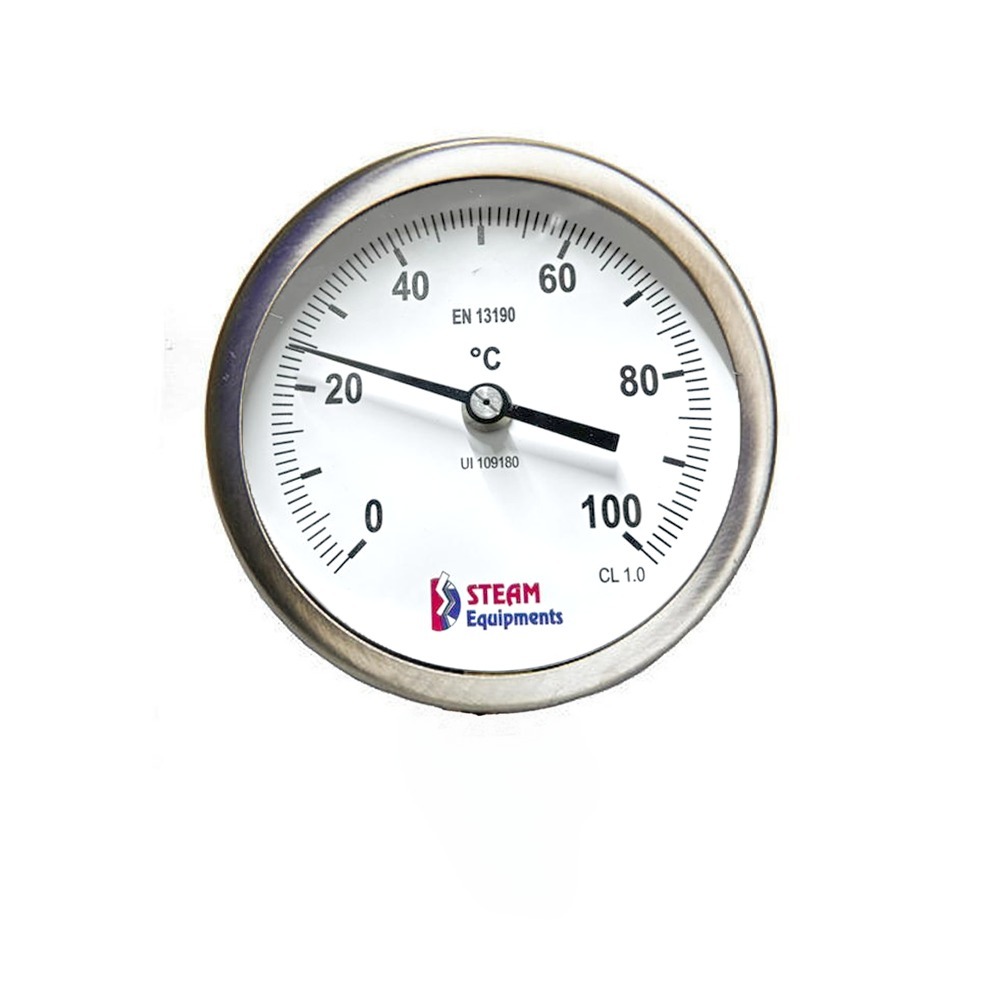

Description

---

The Bimetallic Temperature Gauge operates on the basis of coefficient of thermal expansion of metals. The bi-metal the coil is manufactured from two cold-welded metal strips with different thermal expansion coefficients, which rotate in proportion to temperature. The rotary movement is conveyed to the pointer via a frictionless assembly. A comprehensive range of the standard version facilitates a variety of applications and uses. Adhering to the EN13190 standard, the design and construction of the bimetallic temperature gauge offers a robust and reliable means of temperature measurement with quick response time.

Features

---

• Compliance to latest EN13190.

• Standard ranges : 0 to 50°C up to 400°C.

• Overload capacity of 130% of FSD.

• Ingress protection to IP68 4” & 6” models.

• Accuracy class: tolerance class 1 as per EN13190.

• Stainless steel casing.

• External zero adjustments (optional).

Applications

---

• Suitable for clean air & gaseous or liquid media that will not obstruct the pressure system.

Description

---

This valve is installed in the downstream of sampling systems/heat exchanger. The valve responds only to temperature. Under normal operation, the valve is fully open. If the sample temperature increases within the operating temperature (120ºF), The thermal actuator modulates the valve to close the inlet orifice. The valve automatically opens as the thermal actuator cools. The heart of this valve is a solid to liquid phase change thermal actuator. The actuator contains Thermoloid® compound which changes phase from solid to a liquid as the temperature increases. As phase change occurs, the volume of Thermoloid® material changes significantly with the liquid volume greater than the solid volume. Since Thermoloid® is essentially incompressible under normal operating loads & it is sealed into a rigid actuator housing, only piston can move and extend as the volume increases. This motion is used to open or close the valve.

Features

---

• Automatic: No reset or Operator involvement required.

• No outside Power Source required.

• Rugged, Compact Design, Easy Installation, Fast response.

• Reliable Shut-off : Ram-type plug design provides tight seal upon shutoff.

• Operating temperatures unaffected by pressure.

• Wide Choice of Set points.

• Corrosion Resistant: Materials Stainless steel and Teflon to reduce contamination of Sample stream.

• Operates in any orientation.

• Maintenance free.

Benefits

---

• Purely Mechanical process.

• Reliable shut-off: Ram-type plug design provides tight seal upon shut off.

• No malfunctioning possibility.

• No operator attention required.

• Keeps costly elements of systems like Analysers safe.

• Maintenance free.

Applications

---

TSV is used in Steam & Water Analysis Systems, Instrumentation systems, etc.

• Steam & Water Analysis Systems.

• Instrumentation systems.

• Steam and Water Sampling Systems.

• Automatic Thermostatic Bypass.

• Thermostatic Flow Control.

• High or low Temperature Relief Valve.

• High Temperature Safety Shut-off.

• Thermostatic Drain Valve.

• Thermostatic Cooling Water Control.

• Thermostatic Condensate Drain.

• Heat Exchangers.

Specifications:

---

• Maximum Pressure Rating = 3000 psig

• Maximum Temperature Rating = 120 °C

• Valve Open Temperature (std) = 43 °C

• Valve Close Temperature (std) = 48 °C

• Sample connection = ½” NPT (F)

• Non standard ranges and connections available

Description

---

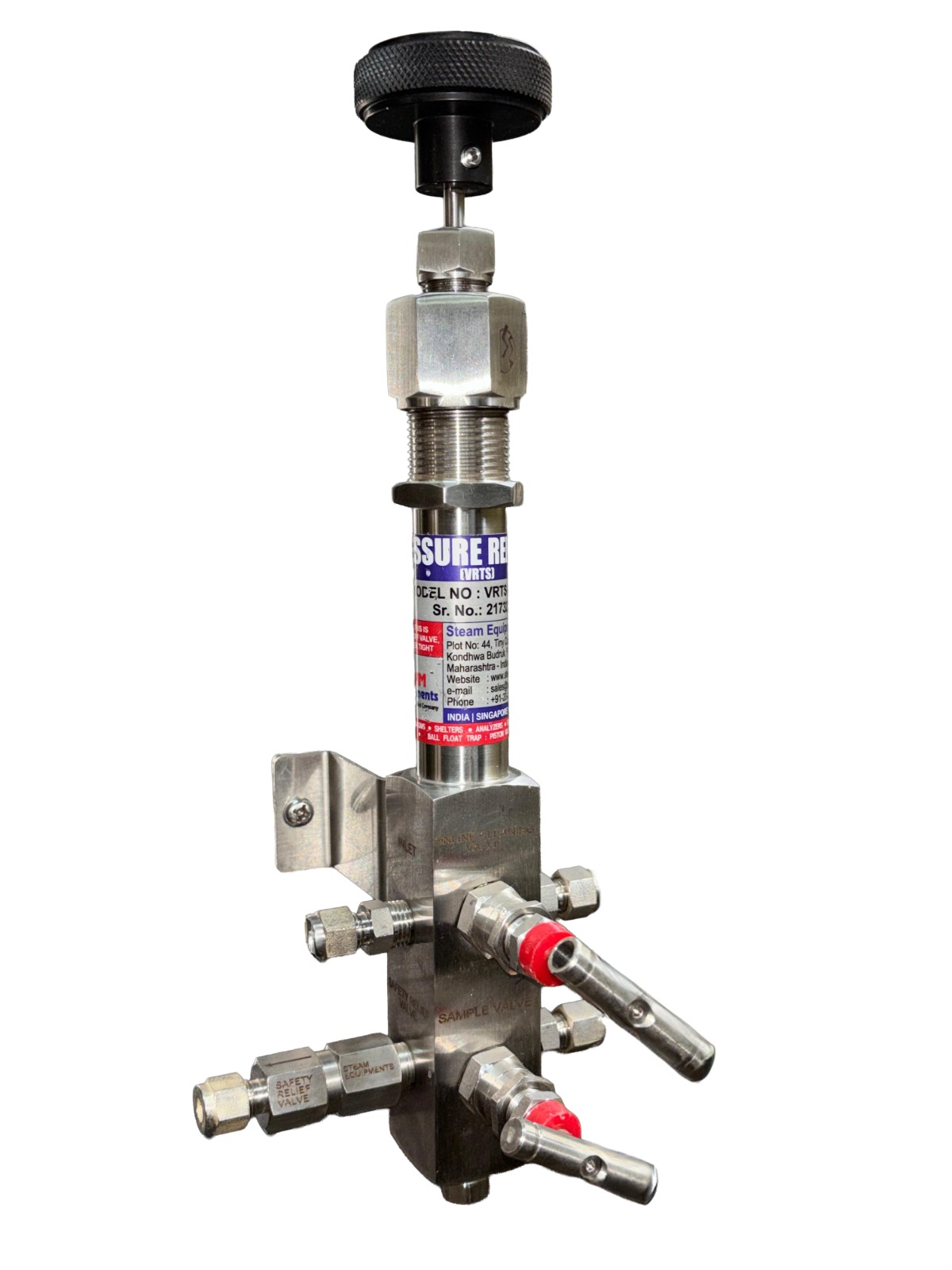

The Variable Pressure Reducer and Thermal shut off (VRTS) is used to reduce the pressure and control the flow of high-pressure steam and liquid samples, and shut off the sample line for high sample temperature. The VRTS is a compact version for pressure reduction. The pressure of the incoming sample is reduced as the liquid is forced to travel through the narrow gap between the tapered rod and the rod opening. Because the work is done over the entire length of the rod, localized wear is held to a minimum. The result is a very long service life compared with devices in which the pressure drop is taken over a very short distance (fixed orifice, pressure regulator, etc.). Other devices erode frequently causing function loss and down time. Thermal shut off valve at the end will close if sample temperature increases by preset value. These type of pressure reducers are recommended by ASME 19.11-1997.

Features

---

• Designed for high pressure boiler sampling lines above 35 kg/cm2 (500 psig) with inlet pressure upto 375 kg/cm2.

• Used to reduce the sample pressure from 400 bar to 3 bar.

• Outlet pressure totally adjustable. Outlet pressure 0 to 30 bar adjustable.

• Rod-In-Tube Design.

• No Filters Required..

• Built-in thermal shut off valve.

• Built-in pressure relief valve.

• Built-in temp contacts.

• On line grab sample valve.

• On line blow down valve.

• 6 components in one assembly

Benefits

---

• Maintenance free with online clearing arrangement

• Robust design.

• In line with recommendations of ASME PTC 19.11-2008.

• No Filters Required.

Applications

---

Use to reduce sample pressure in following applications.

• Steam & Water Analysis Systems

• Boiler water Blowdown systems

• Grab Sampling systems, etc

Specifications:

---

• Wetted Material: Stainless Steel 316

• Pressure rating: 5680 psig (400 bar(g))

• Temperature rating: 650 °C

• Maximum Flow: 100 LPH (liquid)

• End connections: ¼” (6.4 mm) OD tube

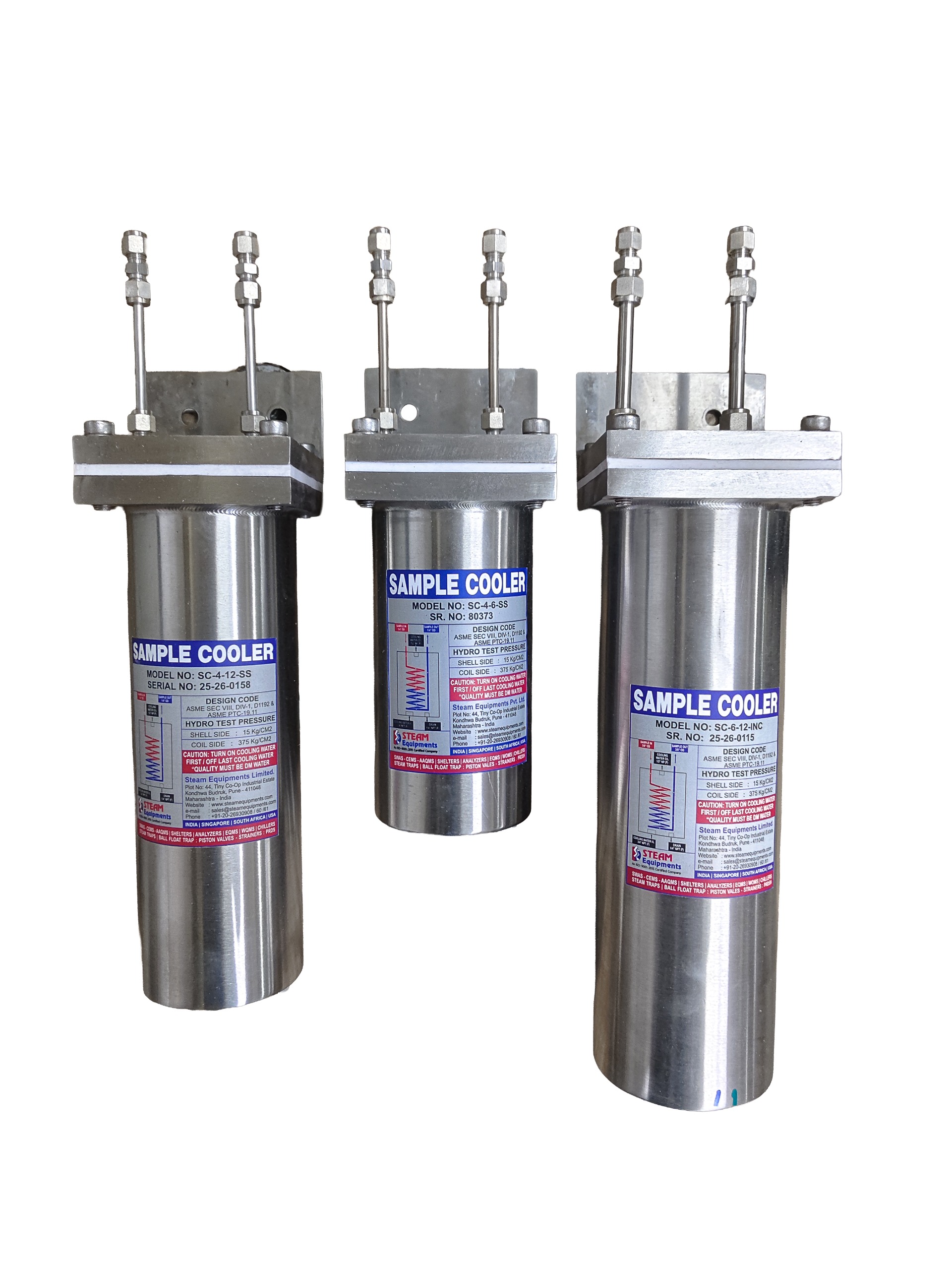

Description

---

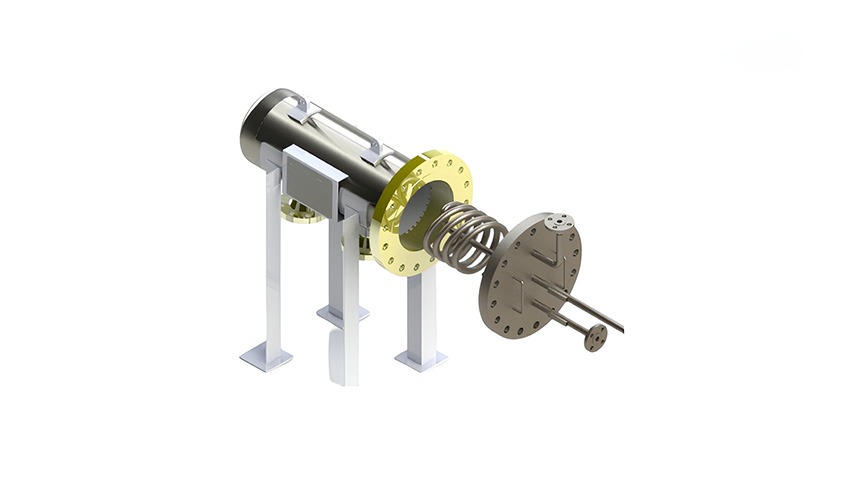

Features

---

• Single continuous stainless-steel tube with no welded joints ensuring long maintenance-free operation

• Handles steam samples of high pressure (250 Bar) and high temperature (580°C)

• Shell & Tube design, Counter Flow

• Removable Coil for easy replacement

• Low cost & Compact Design ensuring minimum cooling fluid utilization.

• On-Line shell cleaning

• IBR/Lloyds approved cooler coils

• ASME Code Certified : Steam Equipments is an ASME Section VIII Division I Code Certified

Manufacturing Facility

Optional Features

• In-built shell relief valves to protect against unlikely events such as coil failure

• Built-in Thermal Relief Valve

• High Temperature Sample Shut-off Valve

• Monel/Inconel coil coolers for high chloride content cooling water

• Grab Sampling/Root cooler module with panel & accessories

• Titanium cooler coils for HCI applications & other corrosive applications

• ASME U Stamped Cooler Available On Request

Data Required for Selection of the Sample Cooler

• Sample Inlet Temperature

• Sample Inlet Pressure

• Process Media, and Application

• Cooling Water Inlet Temperature & Quality SAMPLE COOLER

• Sample Flow SAMPLE COOLER

• Sample Outlet Temperature required

Specifications:

---

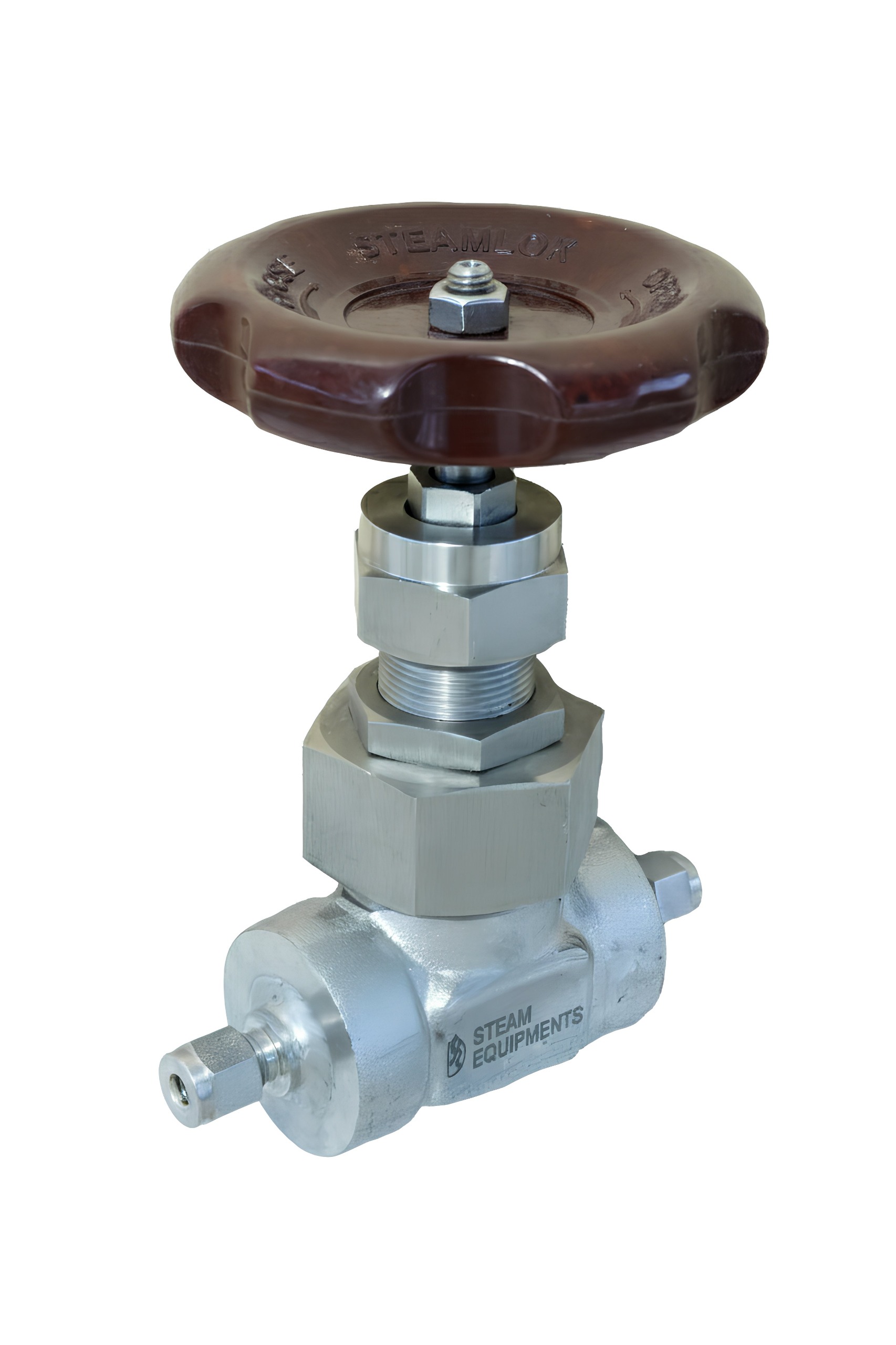

Description

---

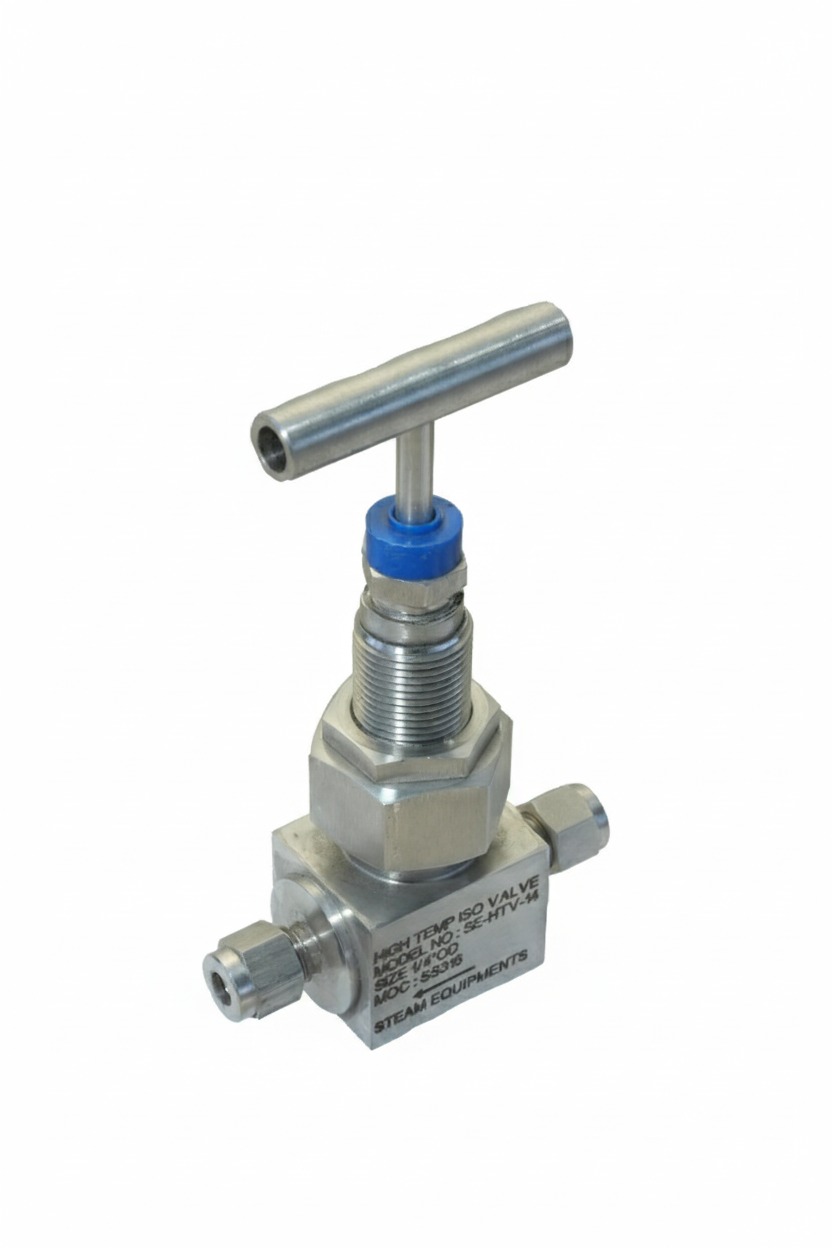

The High-Temperature Valve is a critical isolation and control component used in Steam and Water Analysis Systems (SWAS) to safely regulate high-temperature steam and boiler water samples. Engineered to withstand extreme temperature and pressure conditions, the valve ensures safe sampling, accurate flow control, and reliable protection of downstream equipment such as coolers, pressure reducers, filters, and analyzers.

Constructed from high-grade, corrosion-resistant stainless steel, the valve delivers exceptional thermal stability, leak-tight operation, and extended service life even in demanding boiler applications. Its robust design prevents thermal fatigue and guarantees safe isolation during maintenance, shutdown activities, or emergency situations.

The valve is IBR (Indian Boiler Regulations) certified, ensuring full compliance with regulatory requirements for boiler and steam system components. This certification guarantees that the valve meets stringent safety, material, and performance standards mandated for use in high-pressure and high-temperature steam lines.

By maintaining controlled sample flow and adhering to IBR standards, the High-Temperature Valve enhances operator safety, ensures dependable sample conditioning, and supports accurate SWAS monitoring in power plants and process industries.

Features

---

• IBR Certified for use in boiler and steam-line applications as per Indian Boiler Regulations.

• High-temperature resistant design, suitable for continuous exposure to superheated steam and hot boiler water.

• High-pressure capability, engineered for safe operation in power plant sampling lines.

• Corrosion-resistant stainless-steel construction (SS316 / SS316L / Duplex optional).

• Compatible with SWAS sample conditioning equipment including coolers, PRVs, filters, and analyzers.

• Safe isolation capability during maintenance, calibration, or emergency shutdown.

• Compact and rugged design, ideal for panel-mount and skid-mount SWAS applications.

Specifications:

---

Description

---

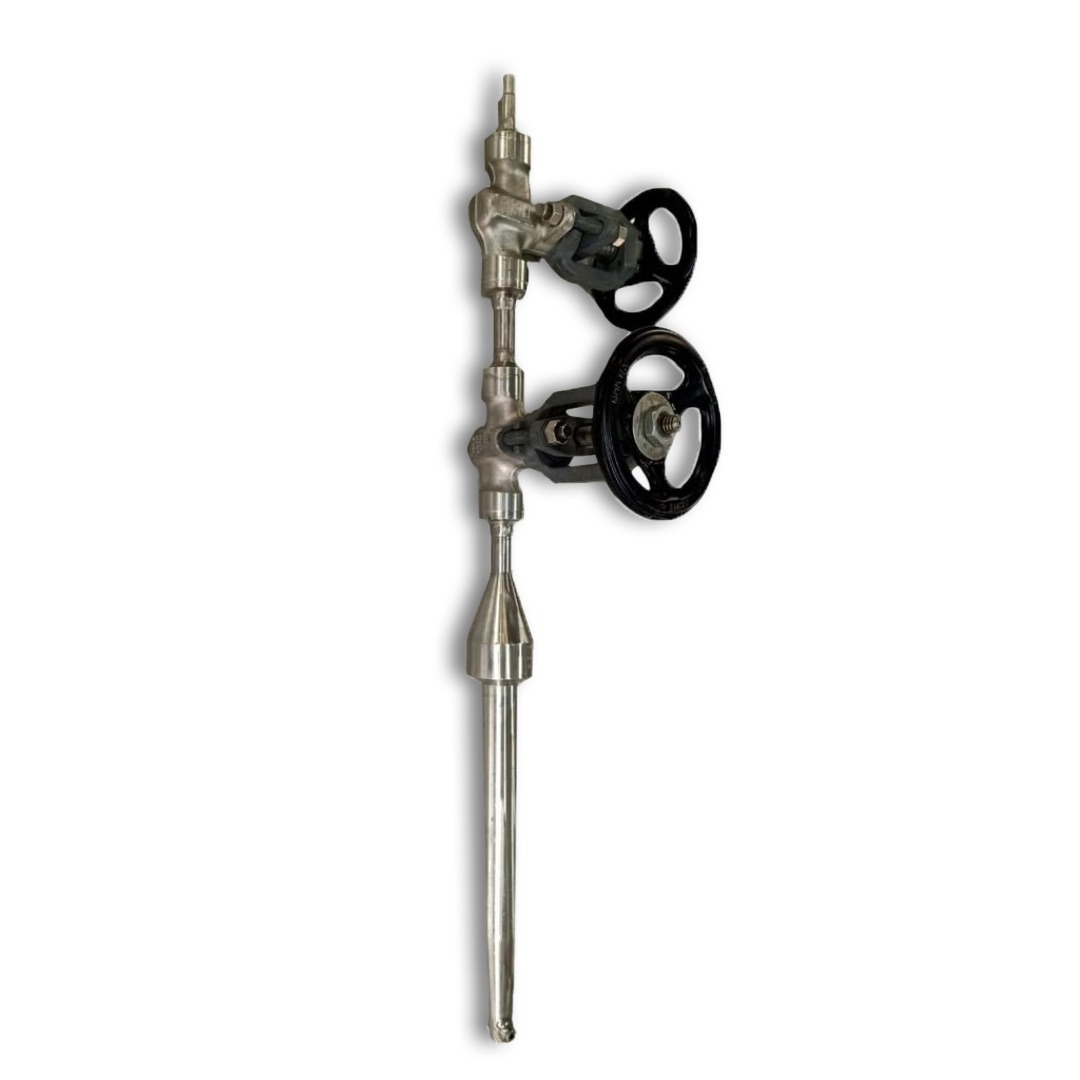

Isokinetic Sample extraction probes are designed to extract saturated and superheated steam samples isokinetically at high temperatures and pressure, ensuring extraction of a representative sample from the process steam lines.

Features

---

• • Designed for supercritical power plants.

  • Rugged design, highly resistant to thermal and hydraulic shocks.

  • Easy to install.

  • Eco-friendly material.

  • Designed for high pressure upto 400 Bar

  • Design Temperature : 610oC

  • Material of construction : SS-316H

  • Dual Isolation valves for maintenance and safety shutoff

  • Installed and working many power plants upto 800MW

Benefits

---

• Extracts steam isokinetically i.e. extracts all impurities in line.

• Avoids sample contamination during extraction.

• Ensures true representative sample for accurate analysis in parts per billion (ppb) level.

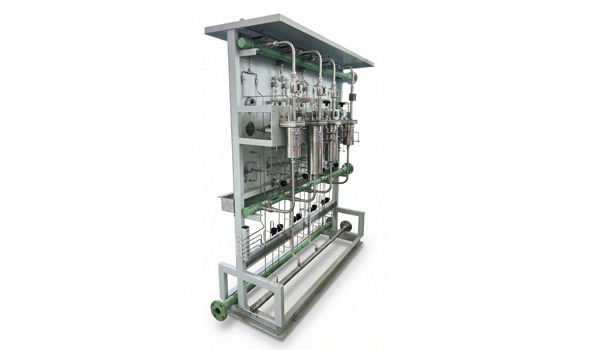

Description

---

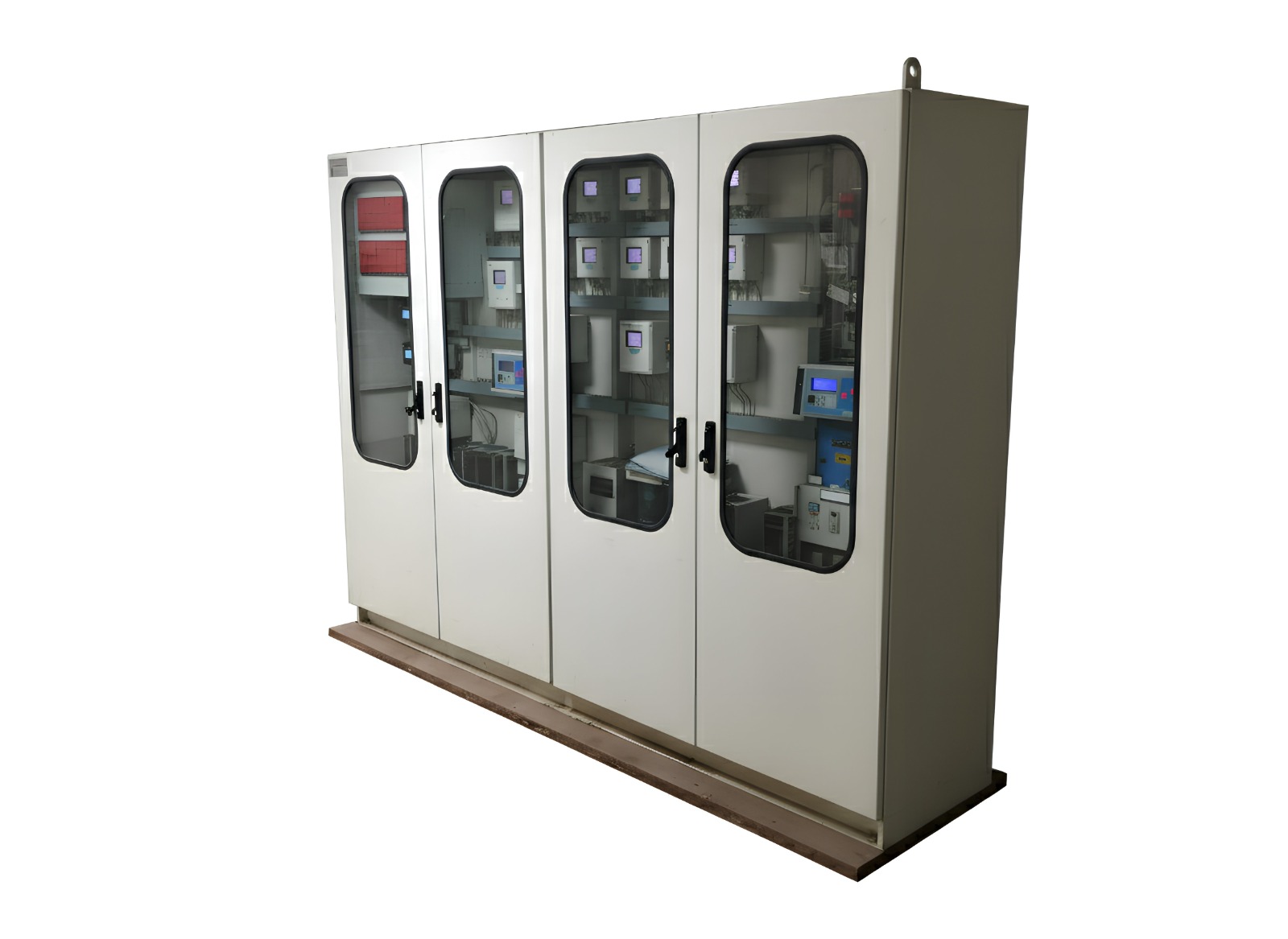

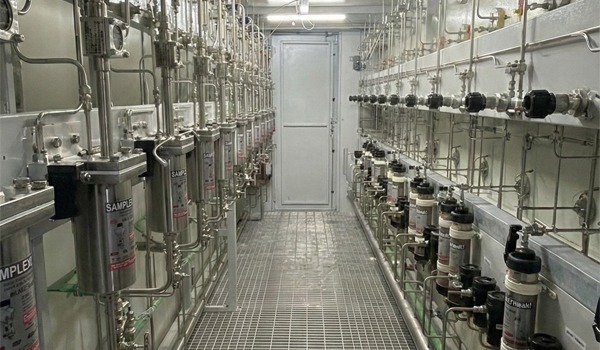

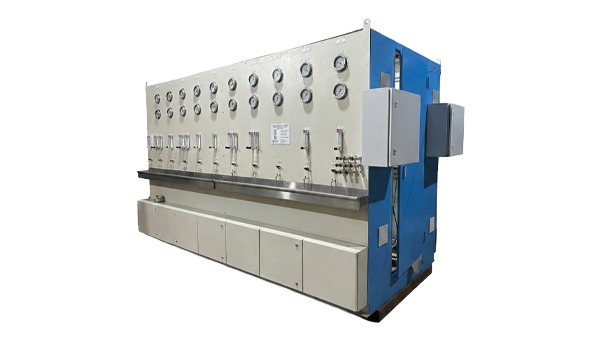

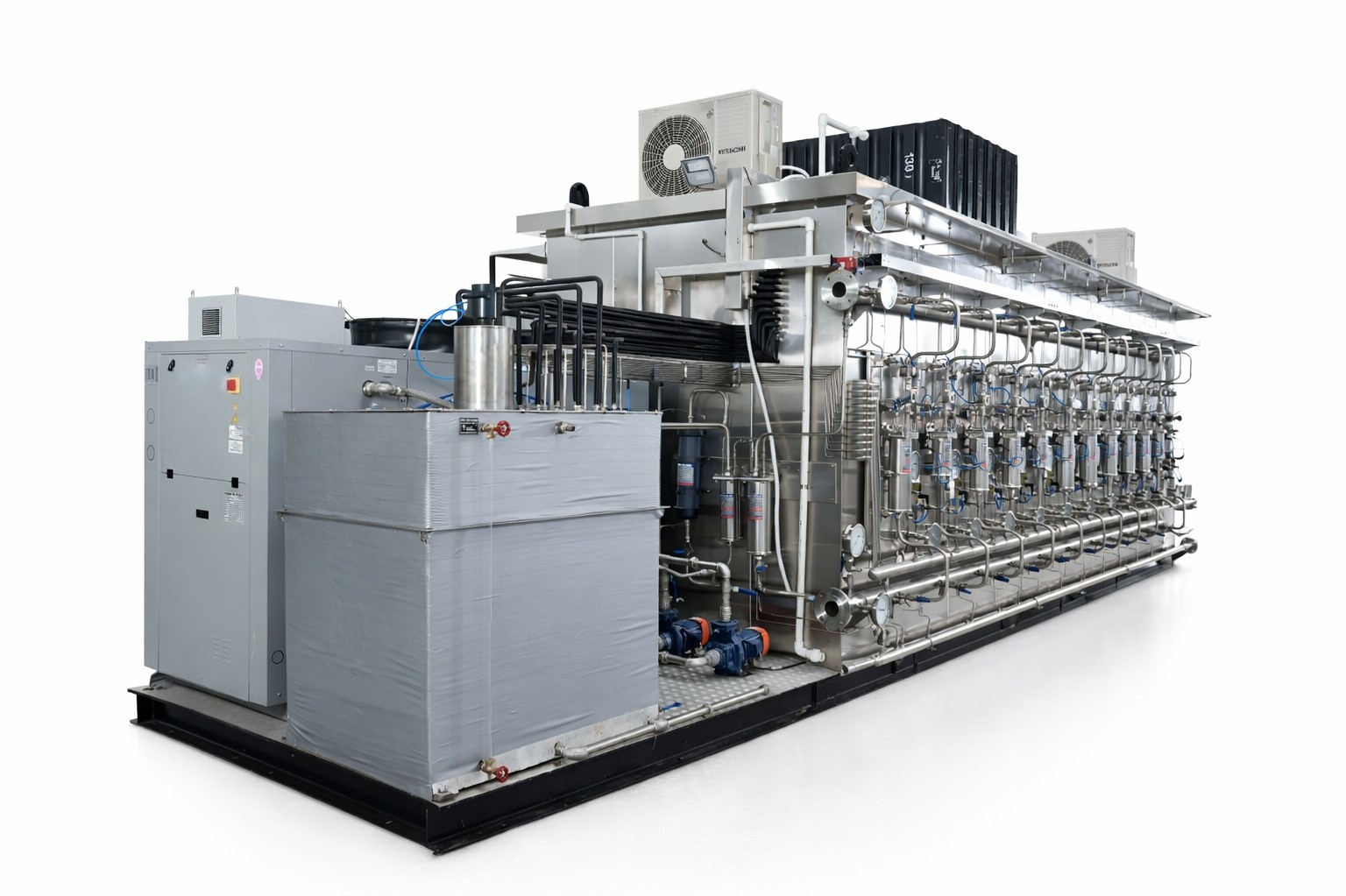

Walk in type sample Conditioning systems are specially designed as per NTPC & BHEL specifications and are suited for mid-size and large plants. These are safe for use, provide separate interface for user & system expert, thus protecting the equipment from unauthorised usage / fiddling. The deliveries of such systems can be given in a medium span.

All Systems are designed in compliance with ASME PTC-19.11, USA, GDCD, UK, EPRI, VGB Standard S006-2012

Features

---

• Closed type construction

• Separate interface for operator

• Easy access for operator to all essential indicating instruments

• Design provides safety to the equipment ensuring longevity and trouble-free operation

• Number of lines: Selectable from 1 to 10 (more also available on request)

• Sample temperatures than can be handled: from 30 to 600oC. (more temperatures can be handled on request)

• Sample pressures than can be handled: from 1 to 300 Kg/cm2 (more pressures can be handled on request)

• Typical size of rack (per line): 2100mm (H) x 650mm (W) x 1200mm (D). (Width will increase incrementally as per number of lines)

• Cooling water temperature: 25 to 35oC (If more, special designs are available)

• Cooling water quality: preferably DeMin water with chloride content 35ppm (If different quality water is available, special designs are available)

Description

---

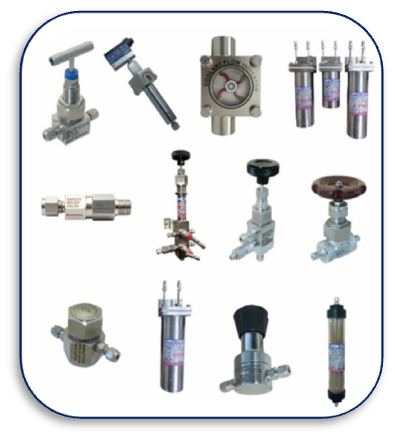

It consists of both wet panel and a dry panel combined into one system. It is customize built panel, which includes Primary and Secondary sampling components in one skid with indicating and control instruments like Isolation Valves, Blow Down Valves, Pressure Regulator, Pressure Gauge, Temperature Gauge, Rotameter, Grab Sample Valves are in front of the panel mounted on SS sheet with common Tundish.Dry panel components such as Sample Cooler, Filter, Cooling and Chilled Water Isolation Valves, Thermal Shut Off Valve, BPRV, Cation Column etc. are on the back of the panel. Flush mounted analyzer panel is adjacent to sample panel, which makes the combined panel compact and easily serviceable. All Systems are designed in compliance with ASME PTC-19.11, USA, GDCD, UK, EPRI, VGB Standard S006-2012

Features

---

• Designed as per ASME PTC 19.11 recommendations.

• Design temp: 650oc and p: 400 Bar

• Compact double helix type, shell and tube sample coolers

• All high-pressure components to pressure reducer can withstand temp up to 550oC

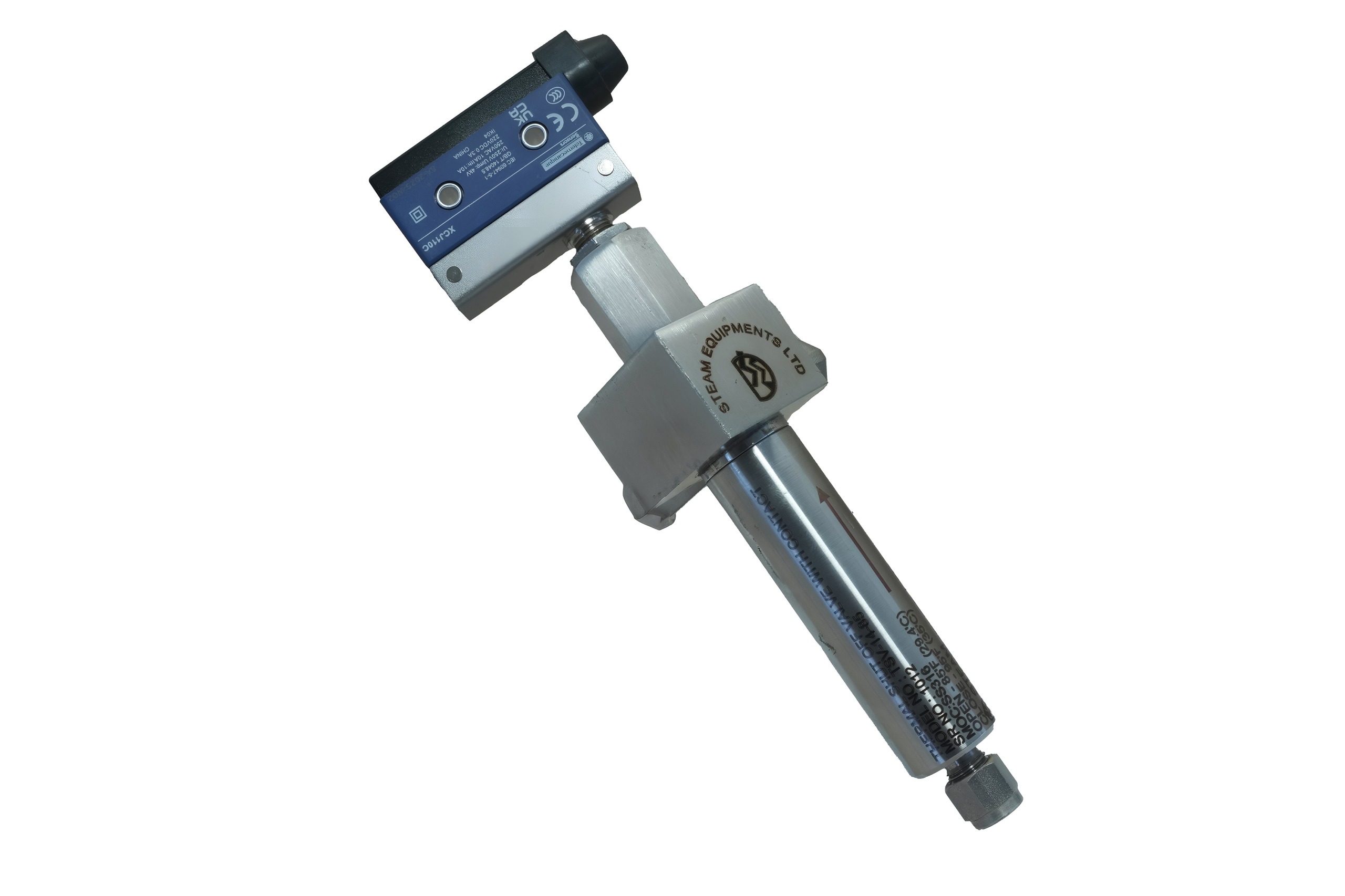

• Automatic high temp shut off valves are used for high temp protection

• No power supply required

• No wiring required

• Rod in tube type pressure reducer

• Online pressure regulator cleaning

• No filters used

• Back pressure regulator with SS diaphragm

• Easy access to components

• SS cooling water pipeline

Benefits

---

• Low maintenance Required

• Cost Effective system

• Accurate & stable measurement system

• Long Life Equipments

• Compact design

Applications

---

• Steam applications Feed water

• Condensate, Boiler Water

• LP Drum Water

• LP/HP Steam, Life Steam

• Main Steam Demi Water

• Condensate, Boiler Water

• LP Drum Water

• LP/HP Steam

• Main Steam for power stations

• Quality Analyzer system

Description

---

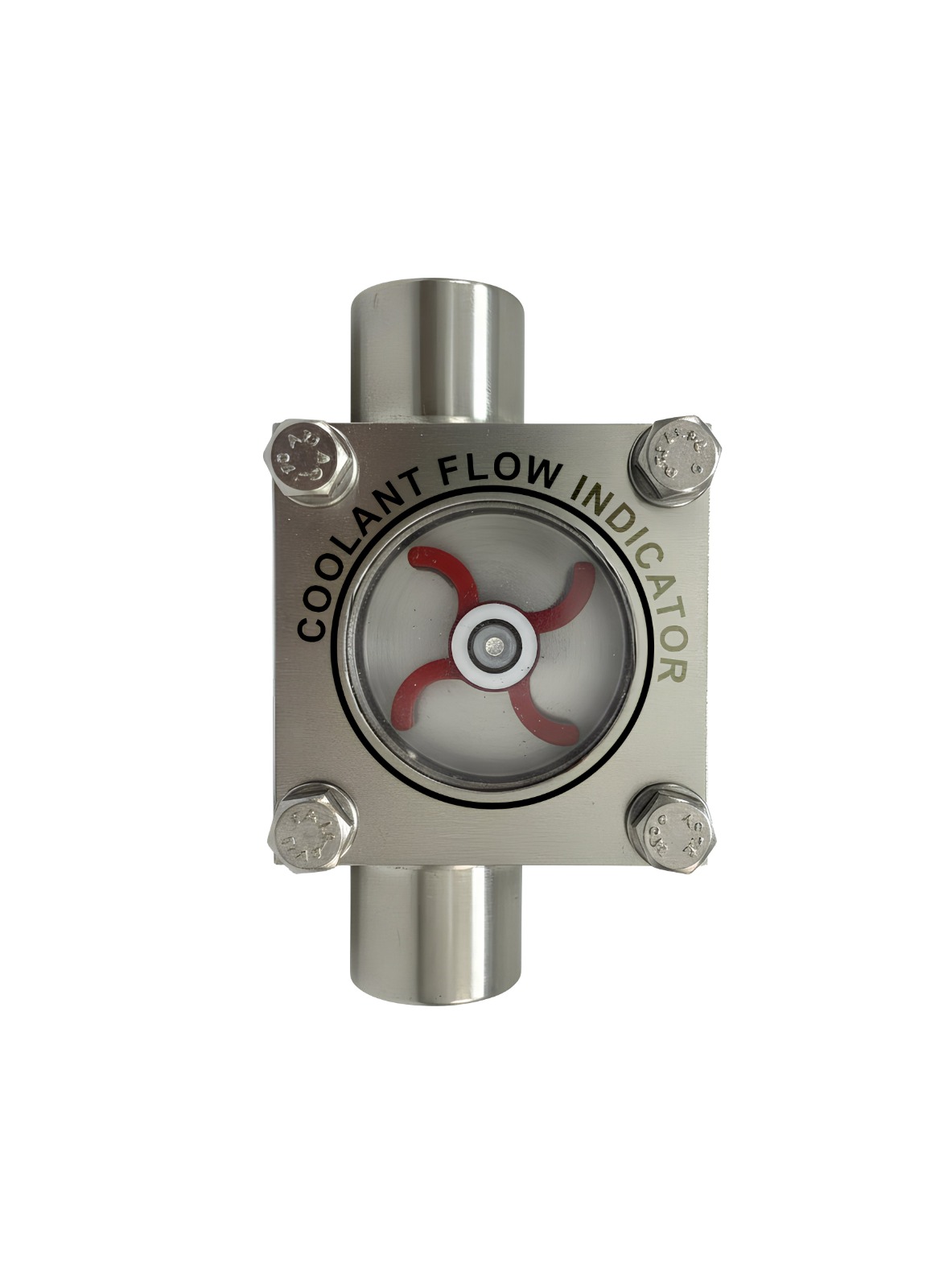

Modular sampling panels for primary sampling and secondary sampling; Primary sampling module includes inlet isolation valve, blow down valve, sample cooler with cooling water inlet and outlet valve with coolant flow indicator to diagnose required flow of cooling water. Pressure reduction and high sample temperature safety valve (thermal shut off valve).

Primary cooling sampling panel consists of rotameter, Back Pressure Regulator, Pressure Gauge, Temperature Gauge and Grab Valve with Tundish.

For conditioning scheme of both, primary and secondary panel- secondary panel includes Secondary Sample Cooler with chilled water inlet and outlet valve with chilled water Flow Indicator, Rotameter, Back Pressure Regulator, Pressure Gauge, Temperature Gauge and Grab Valve with Tundish. The chiller unit is skid mounted modular type, it’s a separate unit which will be connected to secondary cooler chilled water inlet and outlet connections.

All Systems are designed in compliance with ASME PTC-19.11, USA, GDCD, UK, EPRI, VGB Standard S006-2012

Features

---

• Designed as per ASME PTC 19.11 recommendations.

• Design temperature of 650oC and pressure of 400 Bar.

• Compact double helix type, shell and tube sample coolers.

• All high-pressure components to pressure reducer can withstand temp up to 550oC.

• Automatic high temp shut off valves are used for high temp protection.

• No power supply required.

• No wiring required.

• Rod in tube type pressure reducer.

• Online pressure regulator cleaning.

• Back pressure regulator with SS diaphragm.

• Easy access to components.

• SS cooling water pipeline.

Benefits

---

• • SS cooling water pipeline.

  • Cost Effective system

  • Accurate & stable measurement system

  • Long Life Equipments

  • Compact design

Applications

---

• Steam applications Feed water

• Condensate, Boiler Water

• LP Drum Water

• LP/HP Steam, Life Steam

• Main Steam Demi Water

• Condensate, Boiler Water

• LP Drum Water

• LP/HP Steam

• Main Steam for power stations

Description

---

The Company designs and manufactures comprehensive Steam and Water Analysis Systems (SWAS) that provide continuous, real-time monitoring of key parameters in the water–steam cycle, such as pH, conductivity, silica, sodium, phosphate, and dissolved oxygen. These systems are essential for monitoring and controlling the quality of boiler feedwater, condensate, and steam to prevent corrosion, scaling, and operational inefficiencies.  These systems are designed to protect critical equipment by detecting any contamination or deviation in water chemistry that could lead to corrosion or deposition. The SWAS panels comprise sample conditioning modules, cooling systems, flow control devices, and analyzer housings integrated on a single skid or rack. Each system is engineered to ensure precision, safety, and reliability under high-temperature and high-pressure operating conditions.

The Company manufactures the following types of SWAS configurations:

· FIT SWAS (Fully Integrated and Tested Steam and Water Analysis Systems):Steam and water analysis system (SWAS) — A well designed Steam and Water Analysis system (SWAS) can help in monitoring the critical parameters in the steam. These parameters include pH, conductivity, silica, sodium, dissolved oxygen, phosphate and chlorides. A well-designed SWAS must ensure that the sample is representative till the point of analysis. The SWAS system comprised of shelters, walk-way, rack mounted, panel mounted designed as per the customer requirements are the best suited for power plants. These are safe for use, provide good working area for user & system expert, yet protects the equipment from unauthorised usage / fiddling. Hence Steam Equipment’s designed new concept of FIT SWAS (Fully Integrated Steam & Water Analysis System)

·  Modular System:Modular sampling panels for primary sampling and secondary sampling; Primary sampling module includes inlet isolation valve, blow down valve, sample cooler with cooling water inlet and outlet valve with coolant flow indicator to diagnose required flow of cooling water. Pressure reduction and high sample temperature safety valve (thermal shut off valve).

· Combined System:A compact arrangement that integrates multiple analysis streams and parameters within a single panel, optimizing space utilization while maintaining operational efficiency.

· Walkway Type System:Skid-mounted systems designed with a built-in walkway for easy accessibility and maintenance. These systems are suitable for large installations with multiple sample points and analyzers.

· Open Free Standing Rack:Economical, open-frame designs suitable for installations within sheltered environments. These racks facilitate accessibility and are easy to maintain.

· Plate Mounted System:Wall-mounted or plate-mounted SWAS panels designed for applications with space limitations or where modular installation is preferred. These systems are lightweight, compact, and ideal for retrofit applications.

· Lab Sampling Module:Compact bench-mounted units used for manual sampling and laboratory analysis. These systems are designed for pilot plants, research laboratories, and quality control facilities.

· Containerised Systems:Fully enclosed, prefabricated containerized SWAS units equipped with analyzers, chillers, and environmental control systems. These plug-and-play systems are suitable for remote site installations and harsh environmental conditions, offering  mobility and protection for sensitive instrumentation.

 Through this diverse range of SWAS configurations, the Company provides end-to-end solutions tailored to the size, capacity, and operational requirements of each client, ensuring long-term reliability and compliance with international standards.



Features

---

Applications

---
